RESIDENTIAL APARTMENT ( WORKING DRAWING )

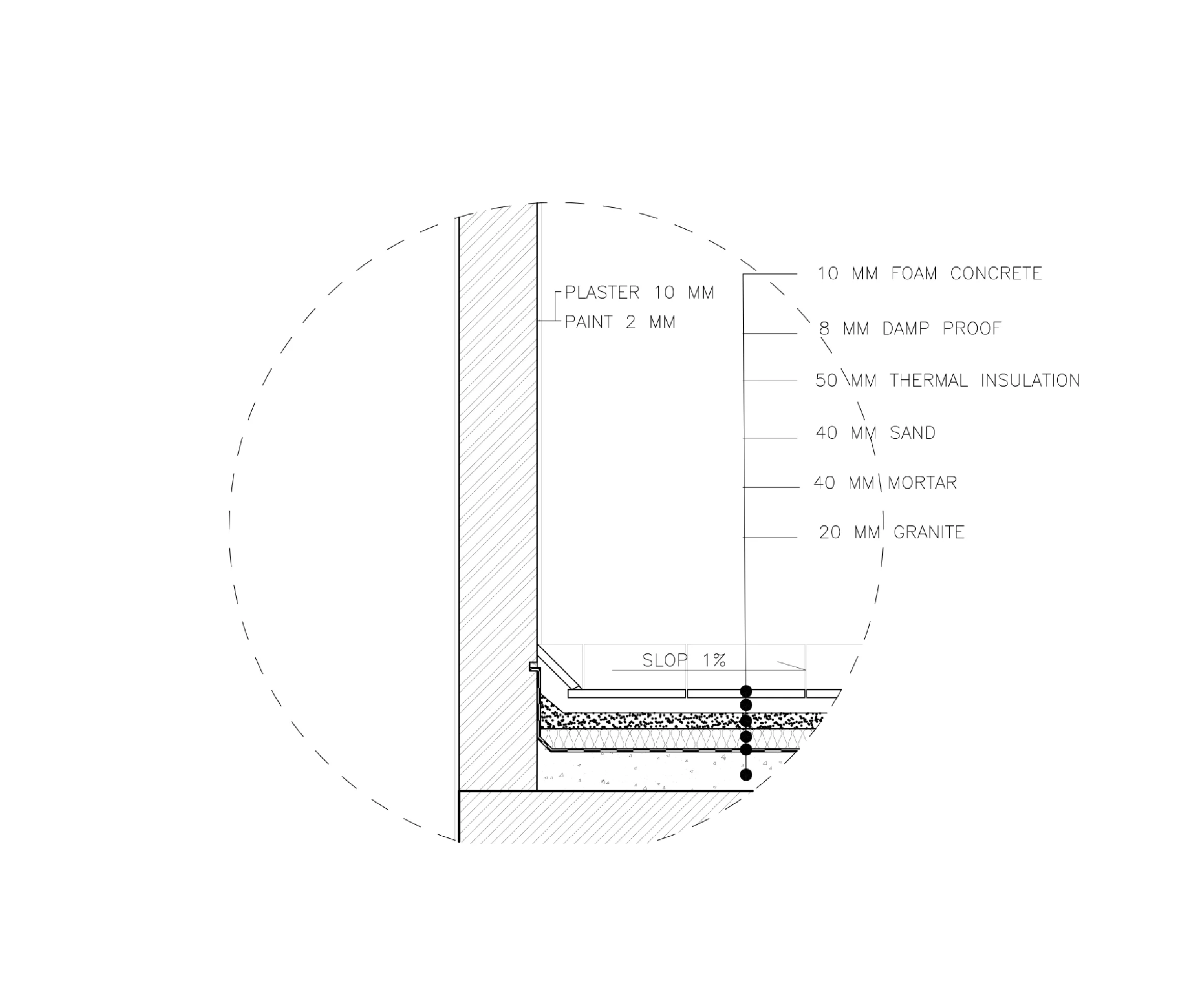

The project is a residential apartment, located on Rawdah district, Jeddah, Saudi Arabia. The apartment consist of five story. The ground floor is a multi purpose floor and the other floors are apartments. The project is focusing on the working drawings from the structural plan to the smallest details on the plumbing plate.
